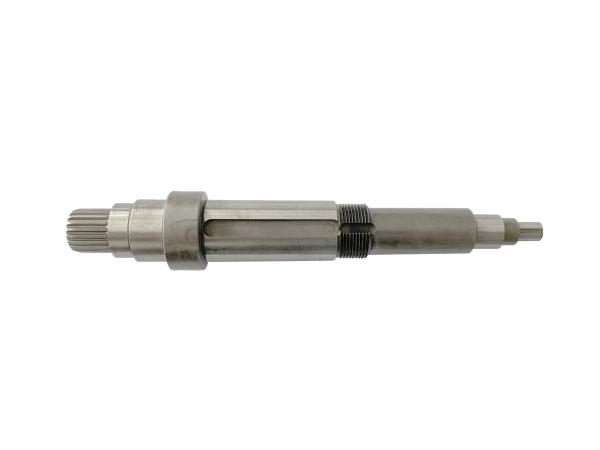

Gear Precision 9 Motor Shafts

Name: Gear Precision 9 Motor Shafts
Brand: WINNER
Price: 100 USD

Brand Name : WINNER

Certification : IATF16949

Place of Origin : TAIZHOU-CHINA

MOQ : 5000

Price : CNY+100-400+YUAN

Payment Terms : T/T, MoneyGram

Supply Ability : 1200+SET+DAY

Delivery Time : 5-8 workdays

Packaging Details : According to customer's requirement

boundary dimension : （φ50-φ55）x（200-270）

modulus : 2

number of teeth : 28

product description : motor drive shaft

materials : low carbon alloy steel

processing module : 3

accuracy of gear : 9

application : Accessories for automobile motor

Contact Now

The shaft shaft is (φ50-φ55) X (200-270) motor shaft, and the gear precision is 9, The heat treatment process of the product is carburizing quenching, carburizing process is a very old process, in recent years, there is a high concentration of carburizing process.

Post-carburizing heat treatment-carburizing workpieces should actually be seen as a composite material with a large difference in surface and center content. Carburizing can only change the carbon content of the workpiece surface, and the final strengthening of the surface and core must be achieved through appropriate heat treatment.

The workpiece after carburizing needs to be hardened and low temperature tempering. The purpose of quenching is to form high carbon martensite or high carbon martensite and fine grained carbide structures on the surface. Low temperature tempering temperature is 150--200C.

boundary dimension	(φ50-φ55)x(200-270)
modulus	1-3
number of teeth	16-30
齿高tooth depth	1-3
tooth width	20-30
weight	1.2-2.3kg
material	20CrMnTiH
heat treatment	carburizing and quenching
gear surface hardness	58-62HRC
tooth line shape	involute
application	Accessories for automobile motor
product description:	motor drive shaft
accuracy of gear	7-10
processing module	1-2
gear type	involute external spline
materials	low carbon alloy steel
surface treatment	carburizing and quenching
processing technic	forging+machine work+heat treatment+grinding
fabricating machinery	mechanical press+CNC Lathe+machining center +gear hobbing machine+gearshaper+grinding machine
checkout equipment	Klingberg Gear Btesting Center+Zeiss CMM+Mitoyo contourgraph
